VPN bridge from home network to AWS VPC with Raspberry Pi

Introduction and disclaimer

I wanted to extend my home network to a Virtual Private Cloud (VPC) within Amazon Web Services (AWS), primarily for use as a jenkins build farm. I have achieved this using a Raspberry Pi as my Customer Gateway device. This post covers the process of configuring the raspberry pi from scratch and AWS from scratch. I'm posting as a reminder to myself, hopefully others will find this useful.

NOTE: I found this post by Pahud Hsieh on hackmd.io very helpful while developing this. I have also relied heavily on the excellent documentation at http://aws.amazon.com/documentation/

I have a fairly standard home network on 192.168.0/24 with a router provided by my ISP.  This post uses a Raspberry Pi, on a static IP address within my home network as a VPN gateway. Allowing any devices on my home network to communicate with EC2 instances (virtual machines), running within my VPC.

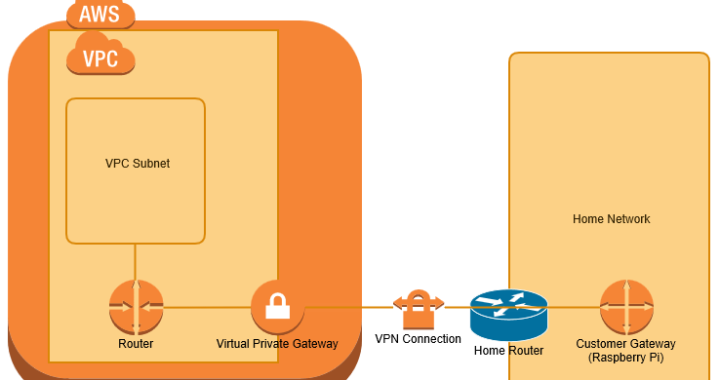

Network Diagram

Network Diagram

Prerequisite

  • Raspberry Pi on a static IP address (in this example 192.168.0.30)
  • Home gateway IP address of you home network is static (My ISP doesn't offer static IP addresses, however the address has not changed for years).
  • AWS account (I suggest also running some tutorials, the free tier is sufficient).

I'm starting with a clean install of Raspbian Jessie Lite, although other distributions of Linux should work.

Configuring VPC

Login to AWS, and select Services->VPC, this takes you to the VPC dashboard. Start the VPC Wizard

 Screen Shot 2016-07-11 at 14.24.36

Choose VPC with a Private Subnet Only and Hardware VPN access and click Select.

Screen Shot 2016-07-11 at 14.27.49



Screen Shot 2016-07-11 at 14.33.15



Screen Shot 2016-07-11 at 14.37.54

Wait for the VPN to be created

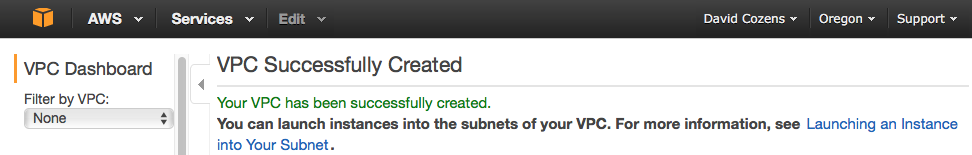

Screen Shot 2016-07-11 at 14.41.53

Now on the left towards the bottom find the VPN Connections page and click the Download Configuration button at the top of the page

Screen Shot 2016-07-11 at 15.04.56

In the downloaded configuration file find the tunnel groups under the IKE section

!
! The tunnel group sets the Pre Shared Key used to authenticate the
! tunnel endpoints.
!
tunnel-group <TUNNEL1_IP> type ipsec-l2l
tunnel-group <TUNNEL1_IP> ipsec-attributes
pre-shared-key <PSKEY_STRING>

You will need the <TUNNEL1_IP> and <PSKEY_STRING> values later, note them down.

Ensure that the static route to your home network exists in the VPN, Opne VPN Connections and select the Static Routes tab, it should show the CIDR for your home network. If not (my setup didn't) click Edit and type in the CIDR.

Screen Shot 2016-07-12 at 10.17.03







Configure the Raspberry Pi

Enable the Random Number Generator

Edit /boot/config.txt and append

# Enable random number generator
dtparam=random=on

Reboot and then install the random number generator tools

sudo apt-get install rng-tools

Install Openswan

sudo apt-get install -y openswan lsof

During package installation you get prompted about using X.509 certificates. I'm sure AWS supports these, for now I'm skipping for simplicity.

Screen Shot 2016-07-11 at 15.24.15

IPSec configuration

Edit /etc/ipsec.conf and set the content as shown below. NOTE this is including configuration files from /etc/ipsec.c/*.conf, this allows different files for different connections.

# /etc/ipsec.conf - Openswan IPsec configuration file
#
# Manual: ipsec.conf.5
#
# Please place your own config files in /etc/ipsec.d/ ending in .conf

version 2.0 # conforms to second version of ipsec.conf specification

# basic configuration
config setup
# Debug-logging controls: "none" for (almost) none, "all" for lots.
# klipsdebug=none
# plutodebug="control parsing"
# For Red Hat Enterprise Linux and Fedora, leave protostack=netkey
protostack=netkey
nat_traversal=yes
virtual_private=
oe=off
# Enable this if you see "failed to find any available worker"
# nhelpers=0

#You may put your configuration (.conf) file in the "/etc/ipsec.d/" and uncomment this.
include /etc/ipsec.d/*.conf

Create a configuration file for this connection, edit /etc/ipsec.d/home_to_aws.conf

conn home-to-aws
   type=tunnel
   authby=secret
   #left=%defaultroute
   left=192.168.0.30
   leftid=123.123.123.123
   leftnexthop=%defaultroute
   leftsubnet=192.168.0.0/24
   right=<TUNNEL1_IP>
   rightsubnet=10.0.0.0/16
   pfs=yes
   auto=start

Where

left - The IP address of your Raspberry Pi on your home network

leftid - The IP address of your home gateway

leftsubnet - the CIDR of your home network

right - the IP address of Tunnel1 in your AWS gateway.

right subnet - The CIDR of your VPC

Input the pre-shared key

edit/var/lib/openswan/ipsec.secrets.inc and set the content as below

123.123.123.123 <TUNNEL1_IP> : PSK "<PSKEY_STRING>"

Edit /etc/sysctl.conf

Append the following lines

net.ipv4.ip_forward=1
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.send_redirects = 0
net.ipv4.conf.default.send_redirects = 0
net.ipv4.conf.default.accept_redirects = 0

Then run sysctl -p to reload it.

Check IPSec status

$ sudo ipsec verify
Checking your system to see if IPsec got installed and started correctly:
Version check and ipsec on-path [OK]
Linux Openswan U2.6.38/K4.4.11-v7+ (netkey)
Checking for IPsec support in kernel [OK]
SAref kernel support [N/A]
NETKEY: Testing XFRM related proc values [OK]
[OK]
[OK]
Hardware RNG detected, testing if used properly [OK]
Checking that pluto is running [OK]
Pluto listening for IKE on udp 500 [OK]
Pluto listening for NAT-T on udp 4500 [OK]
Checking for 'ip' command [OK]
Checking /bin/sh is not /bin/dash [WARNING]
Checking for 'iptables' command [OK]
Opportunistic Encryption Support [DISABLED]



Restart IPSec

sudo service ipsec restart

Check IPsec status

make sure an active connection is running

$ sudo service ipsec status
● ipsec.service - LSB: Start Openswan IPsec at boot time
Loaded: loaded (/etc/init.d/ipsec)
Active: active (running) since Mon 2016-07-11 17:56:40 UTC; 8min ago
Process: 1660 ExecStop=/etc/init.d/ipsec stop (code=exited, status=0/SUCCESS)
Process: 1746 ExecStart=/etc/init.d/ipsec start (code=exited, status=0/SUCCESS)
CGroup: /system.slice/ipsec.service
├─1840 /bin/sh /usr/lib/ipsec/_plutorun --debug --uniqueids yes --...
├─1841 logger -s -p daemon.error -t ipsec__plutorun
├─1842 /bin/sh /usr/lib/ipsec/_plutorun --debug --uniqueids yes --...
├─1845 /bin/sh /usr/lib/ipsec/_plutoload --wait no --post
├─1846 /usr/lib/ipsec/pluto --nofork --secretsfile /etc/ipsec.secr...
├─1853 pluto helper # 0
├─1854 pluto helper # 1
├─1855 pluto helper # 2
└─1974 _pluto_adns

Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: STATE_MAIN_I2: sent MI2,...R2
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: NAT-Traversal: Result us...ed
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: transition from state ST...I3
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: STATE_MAIN_I3: sent MI3,...R3
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: Main mode peer ID is ID_...4'
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: transition from state ST...I4
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #1: STATE_MAIN_I4: ISAKMP SA...8}
Jul 11 17:56:41 vpc pluto[1846]: "home-to-aws" #2: initiating Quick Mode PS...8}
Jul 11 17:56:42 vpc pluto[1846]: "home-to-aws" #2: transition from state ST...I2
Jul 11 17:56:42 vpc pluto[1846]: "home-to-aws" #2: STATE_QUICK_I2: sent QI2...e}
Hint: Some lines were ellipsized, use -l to show in full.

Start on reboot

sudo update-rc.d ipsec defaults

reboot the Raspberry pi and recheck the ipsec service status

Check VPC connection in the VPC console

Make sure Tunnel1 is UP

Screen Shot 2016-07-11 at 19.40.12

Redundancy

For increased reliability, add the second tunnel configuration to the RPI configuration



Create an EC2 Instance

To test the configuration Launch an EC2 instance into your VPC. As an example I'm launching the free tier Ubuntu server.

From the EC2 Dashboard select Launch Instance, select Ubuntu Server 14.04 LTS (HVM), SSD Volume Type, select t2.micro (Free Tier Eligible) then click Next: Configure Instance Details. Select your VPC as the Network.

Screen Shot 2016-07-12 at 09.31.01

Click Next: Add Storage, Next: Tag Instance, Next: Configure Security Group, Create a new security group and add the rules you require, the example below adds SSH and ICMP (ping) from my home subnet.

Screen Shot 2016-07-12 at 09.38.33

Click Review and Launch, Launch, create a new key-pair (or use existing if you prefer), Download the Key Pair and keep them safe. Launch and then View Instance. Wait for the Status Checks to complete.

Screen Shot 2016-07-12 at 09.48.25

Note the private IP address - in this example 10.0.1.19

From your Raspberry Pi you should now be able to ping the instance

$ ping 10.0.1.19
PING 10.0.1.19 (10.0.1.19) 56(84) bytes of data.
64 bytes from 10.0.1.19: icmp_seq=1 ttl=64 time=200 ms
64 bytes from 10.0.1.19: icmp_seq=2 ttl=64 time=204 ms

Adding local Routes

Devices on your home network that are to access the VPC need to have a static route added that identifies the Raspberry Pi as the gateway to use for 10.0.0.0/16.

On Linux based devices (including macs)

sudo route -n add 10.0.0.0/16 192.168.0.30

ssh access

copy the key file that you previously downloaded to the machine you want to open an ssh session from. Ensure the pen file has read only permissions.

chmod 400 jenkins_aws.pem

Open an ssh session using the key

ssh -i jenkins_aws.pem ubuntu@10.0.1.19

All being well you are now logged in to your EC2 instance.
